iSurface

  • ISTS F1

  • ISTS F4

  • ISTS W

  • ISTS S3

With a MTBF of 800,000 hours, Static Power’s iSURFACE Static Transfer Switch are dedicated to applications requiring a high level of reliability.

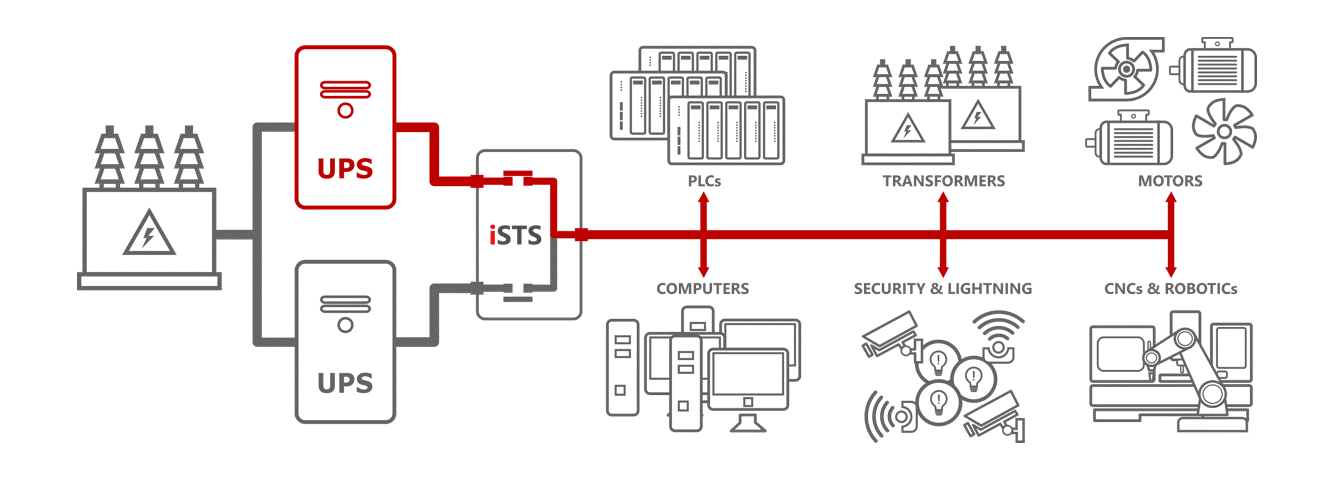

iSURFACE avoids critical equipment power supply disruptions by transparently changing to a secondary source in case of failure of the preferred.

All our switchboard and wall mount iSURFACE are adaptable to particular applications or requirements.

Features

✔️ True solid state, Break-Before-Make transfer

✔️ Transfer time: <1ms to ¼ cycle

✔️ MTBF > 800,000h

✔️ Maintenance bypass

✔️ Incoming source isolators

✔️ HTTP, SNMP, MODBUS TCP, eMail and NTP


Key Features

•  Up to 250A, Single phase and 125A 3-Phases

• Natural cooling, no fans

• IP54, 45°C ambient

• Compact

• Built-in transient voltage protection

• UPS Eco-Mode compatible

• RCD site compatibility

• Safe asynchronous source transfers

• Very high MTBF (>800,000 hours)

• Manual and automatic transfers selection

• Preferred source selection

• Visual and sound alarms

• Bi-colour LED mimic and load indicator

• Maintenance Bypass pad-lockable

• 5 off Voltage free alarm contact

• Remote transfer input

• Up to 32A, Single phase

• Natural cooling, no fan

• IP54, 55°C ambient

• Compact

• Built-in transient voltage protection

• UPS Eco-Mode compatible

• RCD site compatibility

• Safe asynchronous source transfers

• Very high MTBF (>800,000 hours)

• Back feed protection contactors

• Manual and automatic transfers selection

• Preferred source selection

• Visual and sound alarms

• Bi-colour LED mimic

• Maintenance Bypass pad-lockable

• Voltage free general alarm contact

• From 32A to 100A, Single phase and 3-Phases

• True solid state, Break-Before-Make transfer

• Transfer time: <1ms to ¼ cycle

• LED mimic decal with graphic OLED interface

• High level interface MODBUS, SNMP, Email, NTP

• Incoming source isolator switches

• Integrated maintenance bypass

• From 32A up to 250A, Single phase and 3 Phases

• For wall mount or switchboard integration

• Very high MTBF (>800,000 hours)

• IP54 – 45/55°C ambient

• HTTP, SNMP, MODBUS TCP, Email & NTP

• Manual, Automatic & Remote transfers selection

• Embedded controls for input’s breaker tripping and

Maintenance bypass

• Built-in transient voltage protection

• Top or Bottom Entry
